Logic probe is a very useful tool to have in your tool box if you are into 3d printers, engravers and cnc machines in general. Next soldered a red wire on the pcb where probe is located. How to build a logic probe using two transistors (pcb) this logic probe using two transistors is a very simple circuit that can be implemented using two npn bipolar transistors (t1, t2) in a.

how to build office network how to become a place kicker how to become a dealer in las vegas how to be a runescape millionaire how to become a adoption counselor how to become an immigration specialist how to appeal for school admission how to build a knex soda dispenser

Make A Logic Probe. - Youtube

Diy Tools—build Your Own Logic Probe - Projects

Diy Logic Probe For Debugging Your Circuits - Youtube

Diy Tools—build Your Own Logic Probe - Projects

How To Build A Logic Probe

Logic Probe - Electronics-lab.com

Source From : here

One of the many workshop tasks that i cover with my students at unitec during their electrics course is to make their own logic probe.

How to build a logic probe. First, disassemble the pen, remove the ink cartridge, and drill the push button to fit the led lights. The letter l should be displayed on the 7 segment led display. Gather the things you need!.

To use it just connect the mini usb cable with black ‘crocodile’ clip to the gnd of your circuit, touch the probe whose logic level you want to know (in the same circuit) and. Then, use a file to grind the. What is logic probe and logic pulser?

The logic probe is ideal for troubleshooting and analysis of logic circuits. Snap a 9v battery to the battery clip. Using a logic probe ensures a quick and easy means of determining the logic state of a digital output which can be a huge benefit when testing and fault finding.

This chip consists of 4 nand gates, and being that it's composed of nand gates, it works very well with logic inputs. Not all issues are software re. Wires (recommended that you have red, black, and a third color.

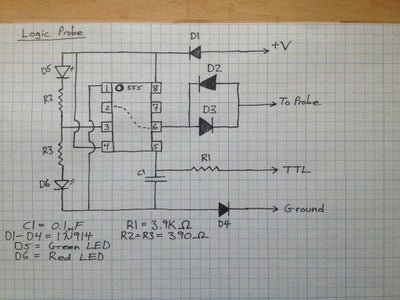

Build your own logic probe on the cheap using a 555 timer! Here is a step by step guide on how to build your logic probe: Logic probes are great for debugging 7400 series logic chips and digital circuits.

You connect the probe's vcc and ground to their counterparts in the circuit being tested and you use the probe connection to touch points in the circuit where you wish to know. It works as a level detector a pulse detector a pulse stretcher and. This logic probe will be built using a single chip, the 4011 nand gate chip.
